K-ells and C-ells

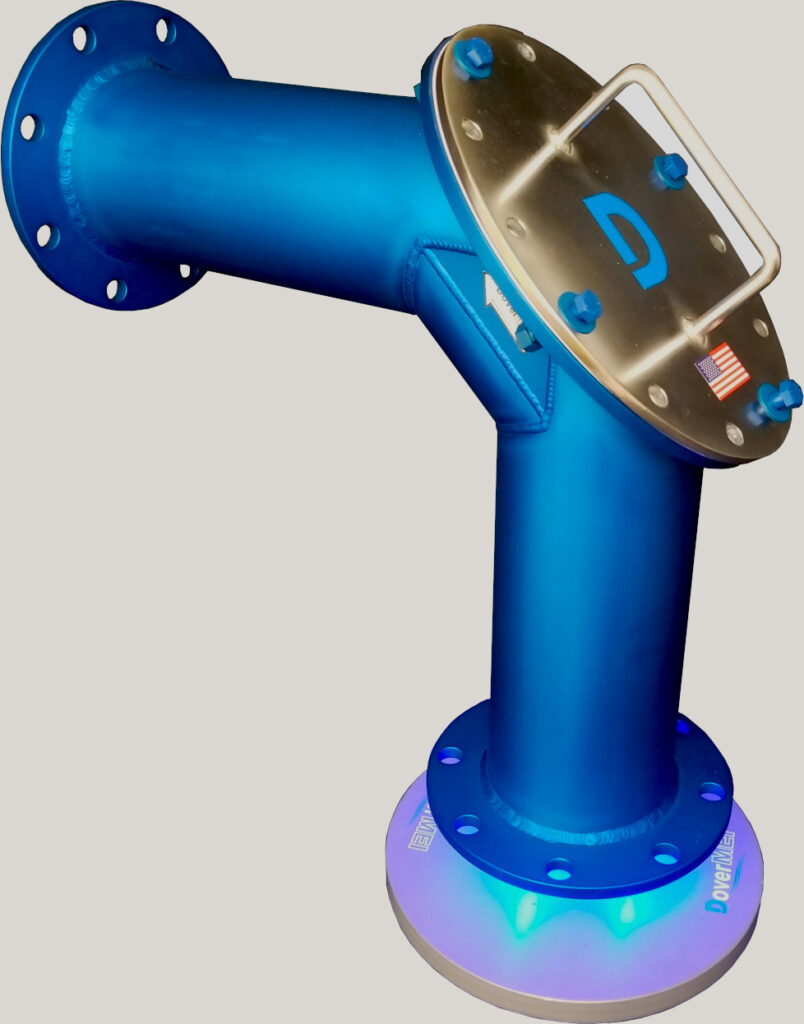

The K-ELL was developed for Polymer Pellet pneumatic conveying service to reduce degradation issues.
  • The K-ELL was developed for Polymer Pellet pneumatic conveying service to reduce degradation issues.
  • Removable/replaceable contact plate serves as an inspection access for the convey line. Contact plate includes a proprietary process for minimizing the seat gap.
  • Standard Construction:
    • Aluminum Sch.10, Stainless Steel contact plate, white neoprene gasket.
    • Stainless Steel Sch.10, Stainless Steel contact plate, white neoprene gasket.
    • FF Flange 150#, Plain End, T.O.E.
  • Standard Sizes stock in aluminum:
    • 6” Sch.10
    • 8” Sch.10
    • Non-stock sizes available 4”Sch10 thru 14”Sch.10, aluminum or stainless.
  • Options:
    • Internal Unidirectional Hammered Finish
    • Anodizing
    • K-TEE Lateral
    • Stepped Convey Line Transition
    • Target Box Convey Line Termination
